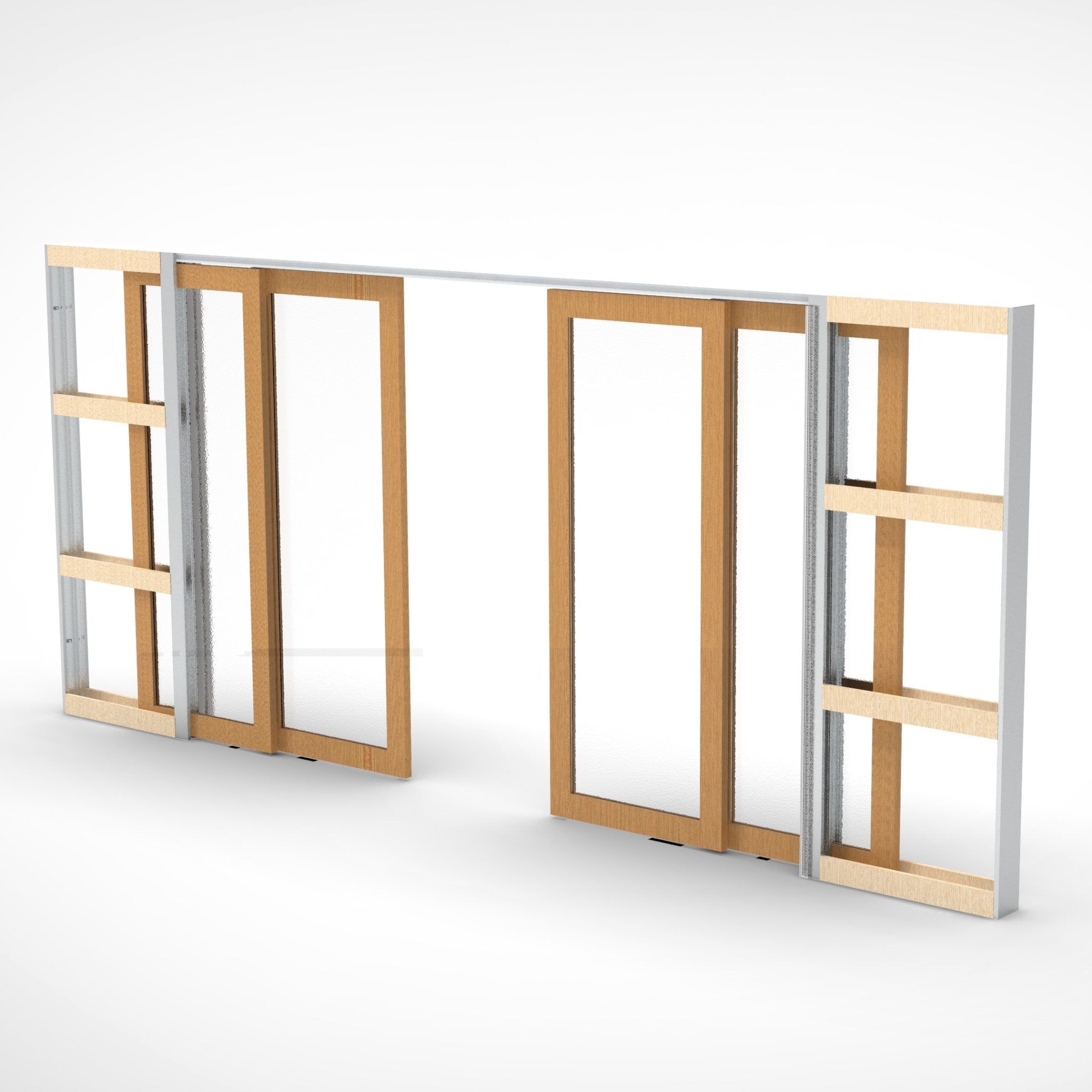

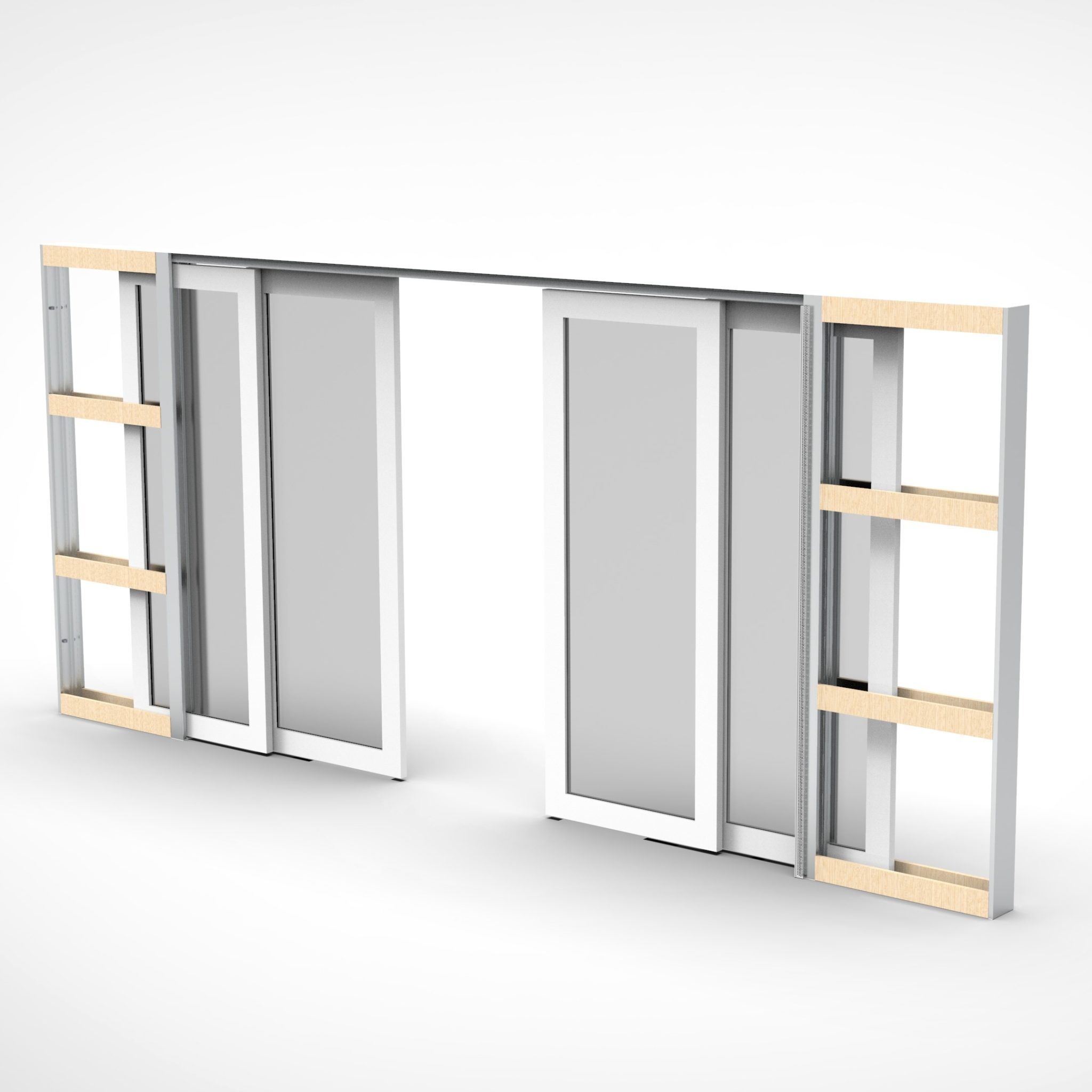

Telescopic Double Cavity Frame

Telescopic Double Cavity Frameincorporates the same quality track and carriage system. That is use in all Premiums Sliding Doors Cavity Slider architectural units. Because the telescopic system hangs from the top track. There is no need inconvenient floor guides or tracks. Where the doors overlap a small floor guide fitted. This provides invisible and reliable guidance for each door.
The Double Cavity slider is a pre-fabricated unit that is very simply installed to allow double doors to fully slide into the pockets either side of the door opening, saving the space normally required for the doors to swing open into the room.
Telescopic frame allowing two door panels to go into the same wall giving the widest opening and maximum light in the shortest wall space.

ezgif-com-optimize

Configurations

  • Telescopic (2 doors) frame 140 mm
  • Telescopic (3 doors) frame 196 mm

Jamb Details

  • Architrave
  • Square set (Ezy Jamb finish)
  • Shadowlinee

Operation

  • Manual (Standart)

Suitable Door Types

  • Aluminium Doors
  • Timber Doors (Solid, Hollow and MDF)

*Please use our  NEW online calculator left slide bar

if you want place order or contacr us please use this form

Get quote



Description

DOUBLE TELESCOPIC CAVITY FRAME

DOUBLE TELESCOPIC CAVITY FRAME incorporates the same quality track and carriage system. That is use in all Premiums Sliding Doors Cavity Slider architectural units. Allowing the confident use of over-height and over-width wardrobe doors.
Because the telescoping system hangs from the top track. There is no need inconvenient floor guides or tracks. Where the doors overlap a small floor guide fitted. This provides invisible and reliable guidance for each door.

The gap between doors (when using a 38mm thick door) is 10mm. This may reduced to 7mm if a thicker door is (up to 41mm thick).

Cavity sliding doors and telescoping sliding doors can be supplied from the same joinery manufacturer. As the same standard thickness doors that suits our cavity sliding frames (35 – 41 mm thick) can be used in Double Telescoping Cavity Sliding Door. This uniformity ensures a consistent look between doors in a given area or throughout a building.

Also incorporated with this unit are the closing jambs and head jambs, providing a simple and easy way to finish off wall linings. The top head jambs that cover the track and running gear are easily removable. Allowing  access for servicing or door removal. Where a full height detail or square stopped look is important. These units may also supplied with no closing jambs and no head jambs. Minor assembly of the closing jambs to the track is require on site.

Triple Telescoping 3 top track system also available.

On-line Calculator
close slider

Calculator by door size

Please enter your door size in mm
Door Height
Door Widht
Choose configurations
Add Soft Close Mechanism (Max 60 Kg)

*All prices excl. GST, (Included standard wall thickness trims set and roller kit,) *Prices are APPROX ONLY
